Starting with the My Leviton app 3.22 a Dashboard was added to the My Leviton app. This feature provides easily customizable widgets that puts all your favorites at your fingertips. View and control your most important devices, scenes, activities, and energy information all in one place. The Dashboard is a convenient way to customize your experience.
Navigation icons:
At the bottom of the app are new icons. The Lightbulb will navigate to the Devices Screen. Previously the Devices screen was the Home screen. The Dashboard offers a customizable, convenient interface for controlling lights and other devices connected to My Leviton.
Below the Rooms are icons for interfaces included in the Residence. This includes the interface for the Leviton Smart Load Center and the Bridge for No-Neutral Switches and dimmers
The Dashboard: Lighting
To the left of the Lightbulb control icon is the Home Icon which will take you to the Dashboard.
The Dashboard will automatically populate the lighting widgets for rooms, devices, activities and scenes that are already setup in your system. In addition to controls, the Snapshot shows devices that are on and off. Pressing the Device On/Off Card will allow you to control devices that are currently on or off. If items are missing, don't worry, we will show you how to edit the Dashboard.
The Dashboard: Load Center

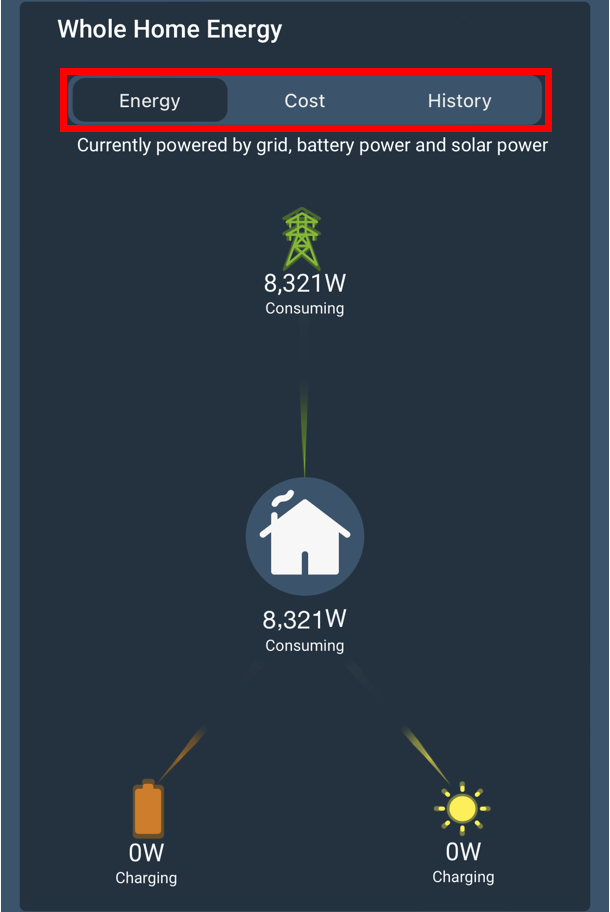

When using the LWHEM the Dashboard will automatically show the Whole Home Energy widget. The three options allow selection between energy usage, estimated usage and historical usage.

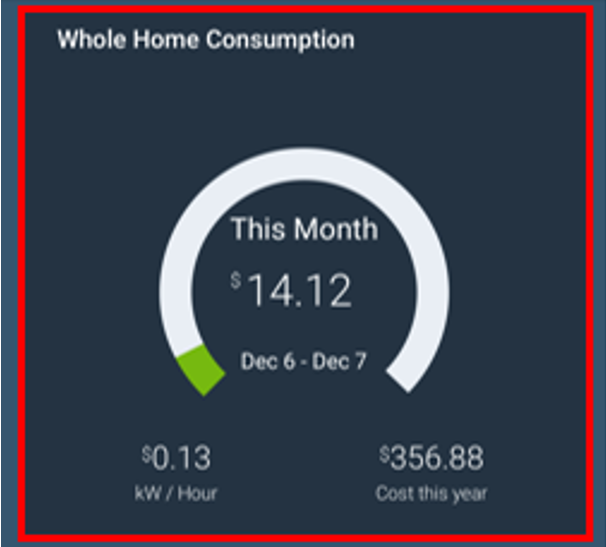

When using the LDATA the Dashboard will automatically show the Whole Home Consumption widget.
The Dashboard: Snapshot

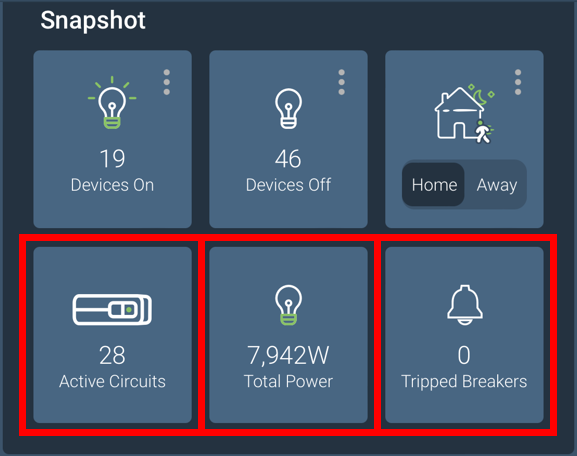

The Snapshot widget adds the ability to see the number of Smart Breakers that are actively consuming energy. The Total Power card shows a total of all power usage. If any breakers are tripped they are in shown in the Tripped Breaker card.
Two other Load Center widgets are available in the Dashboard.

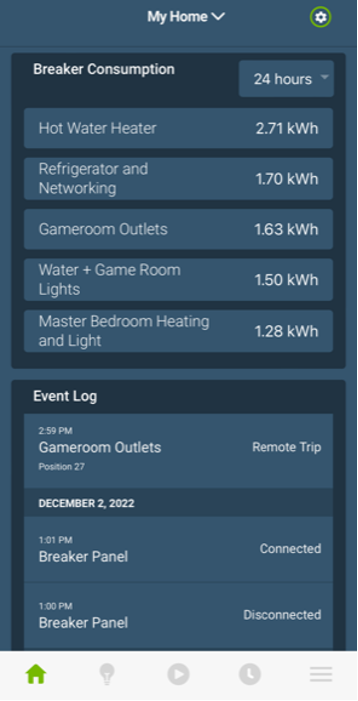

- Breaker consumption provides a quick view of the top 5 Smart Breaker energy consumers over the past 24 hours, week, month or year. Use the dropdown to choose the timeframe.
- The Event Log offers the ability to see Load Center history
Now that your are started with the Dashboard you may want to read the article How Do I Customize The My Leviton Dashboard?
