Adding a Device

Preparing to Add a Device:

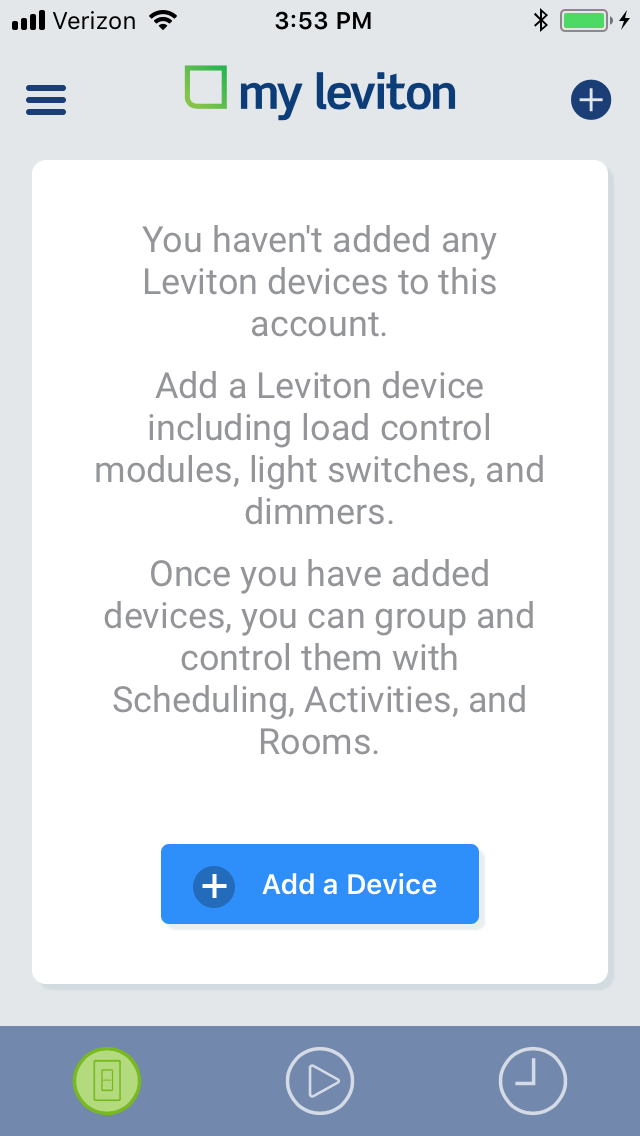

When no devices are currently enrolled, choose the Add a Device Now option.

Note: If a device has been previously enrolled, it will be shown in the app. Choose the + button in the upper right corner, select Add Device, and advance to Step 1.

Step 1:
Select the type of device that you are attempting to connect.

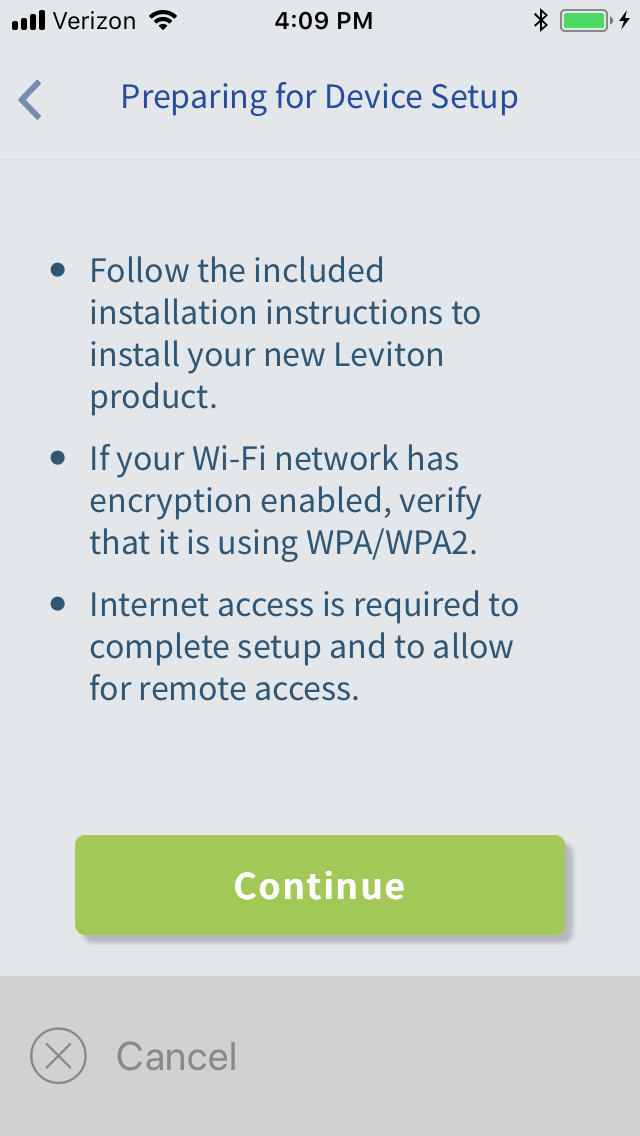

Preparing to Add a Device:
Review in app instructions which outline important installation, and networking requirements for successful enrollment. In addition, contact information is provided for customer support if needed.

Confirm the Wi-Fi device is ready for inclusion with the LED quickly flashing green.

Step 2:

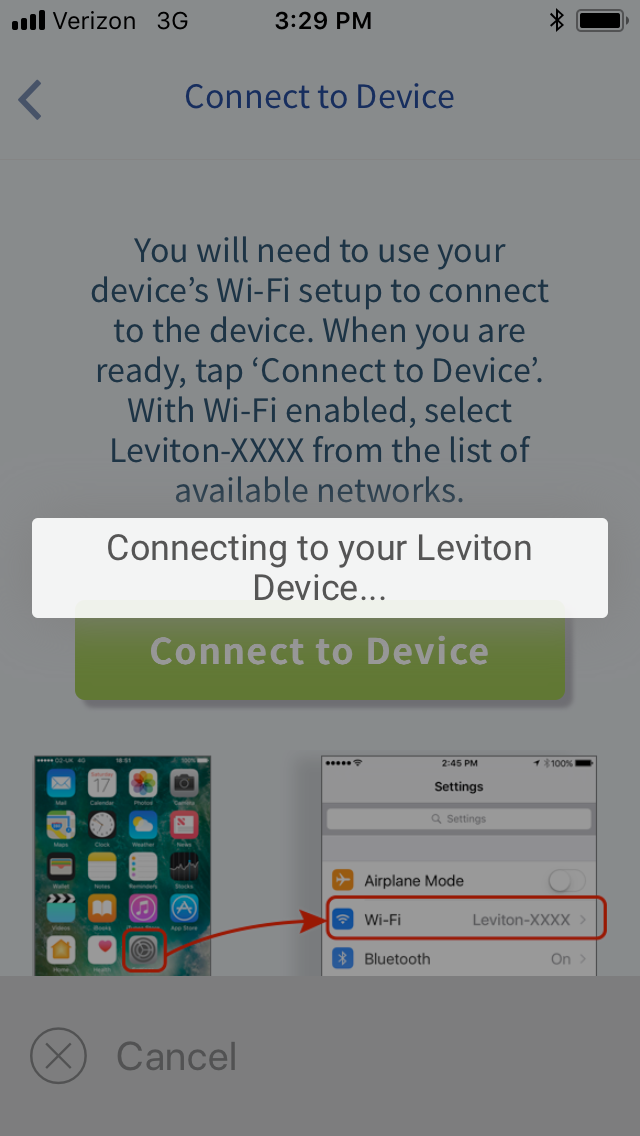

To communicate to the Internet, the Wi-Fi device must be added to your Wi-Fi network. To accomplish this the app will guide you through the steps for connecting to the Wi-Fi device, providing the Wi-Fi network information, and confirming the Wi-Fi device can successfully connect to the cloud.

Follow the app instructions for connecting the mobile device to the Leviton Wi-Fi device. Steps for 2a, 2b and 2c will clarify each separate step.

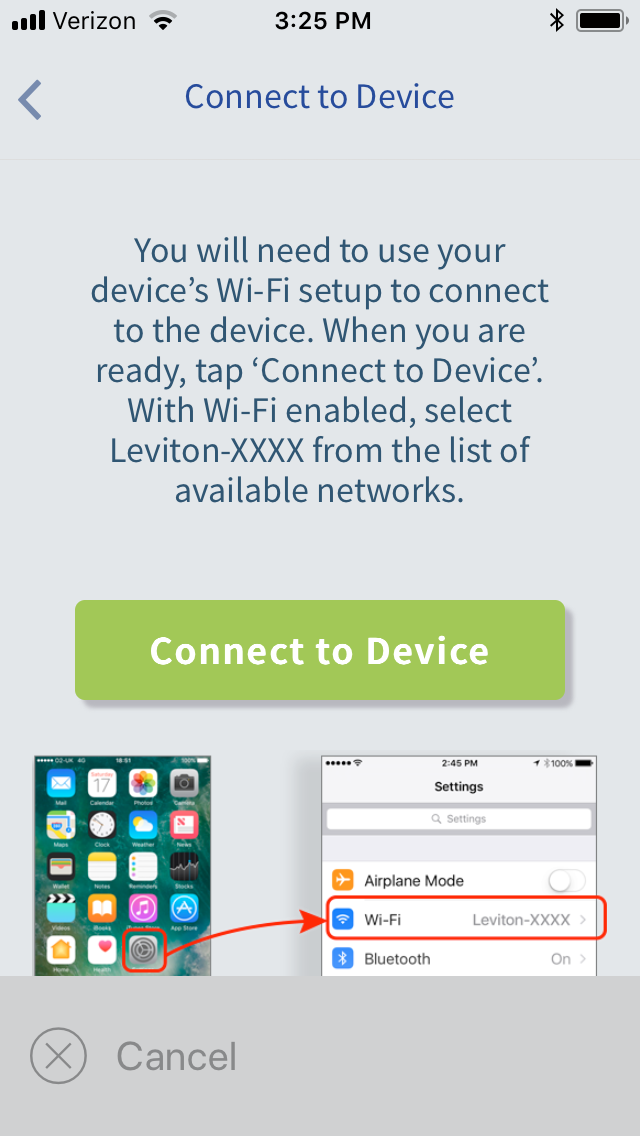

To start, press the Connect to Device button.

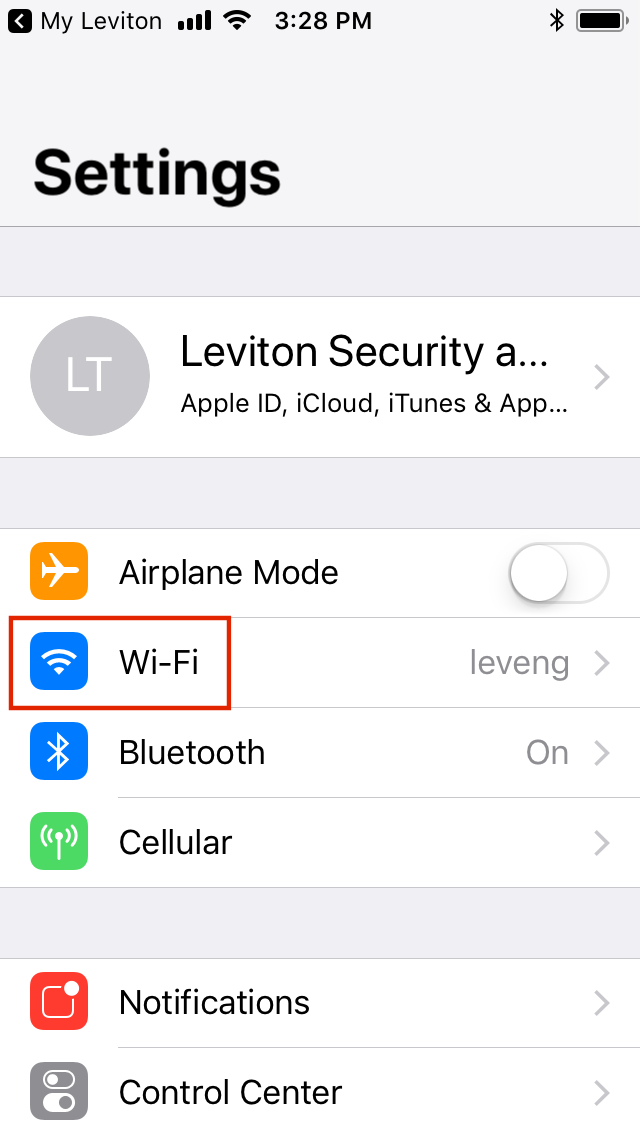

Step 2a:
The app will bring you to your mobile device's Settings screen. Select Wi-Fi.

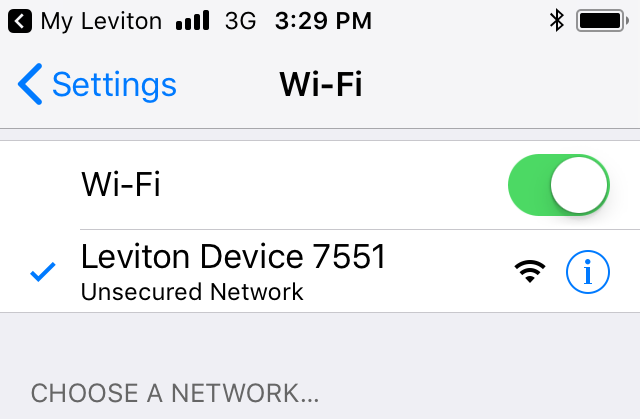

Step 2b:
Find the Leviton Decora Smart Wi-Fi device in the list of available Wi-Fi networks (it will be listed in the format of Leviton Device-xxx). Select it to connect you mobile device's Wi-Fi to the Leviton Decora Smart device's Wi-Fi network.

Step 2c:
Navigate back to the My Leviton app. Once you've returned, the My Leviton app will automatically connect to the Leviton Wi-Fi device.

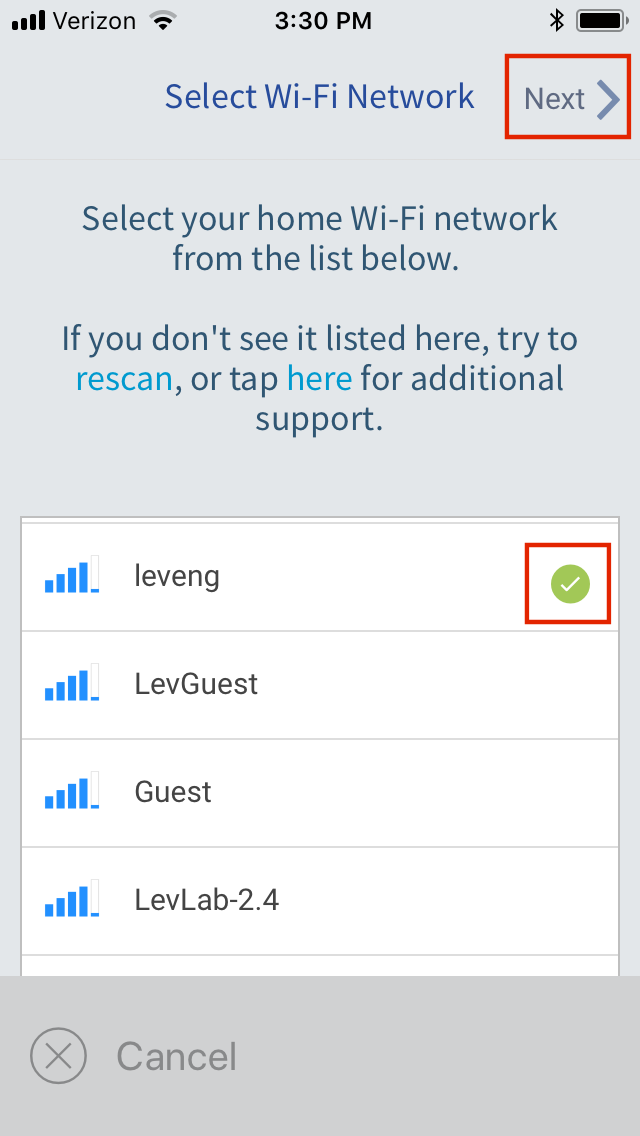

Step 3:
The app will provide a list of visible wireless networks available to the Leviton Wi-Fi devices. Choose the network with the best signal strength available that you are authorized to join.
Press Next.

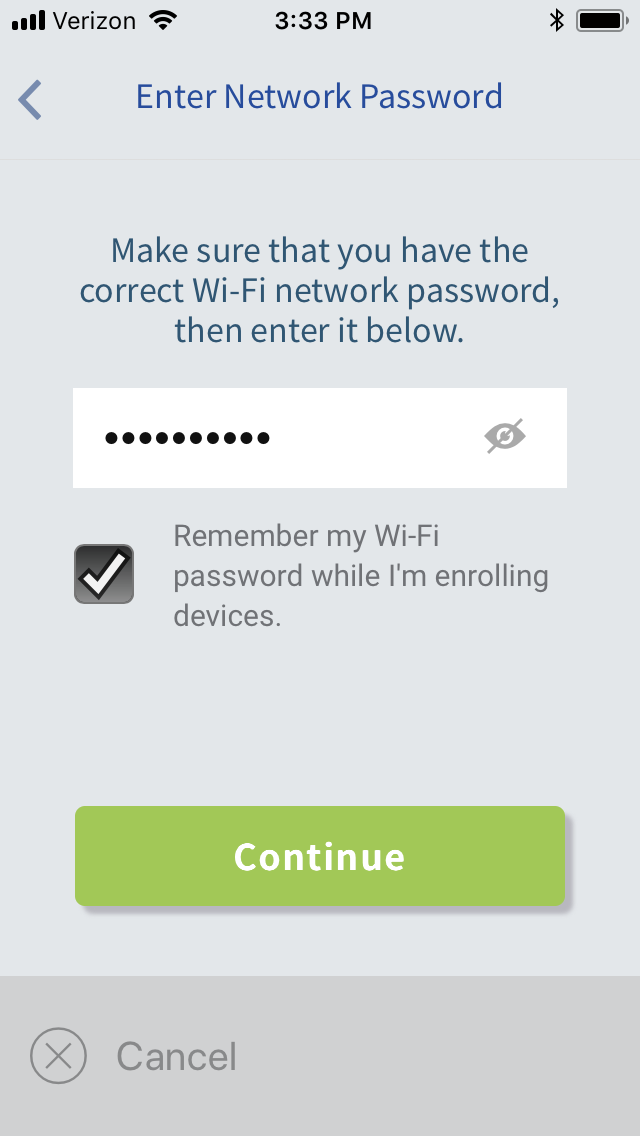

Step 4:
Enter the network password. Please note that passwords are case specific. If you are in a safe location to show your password, press the eye icon to see the text.

Press Continue.

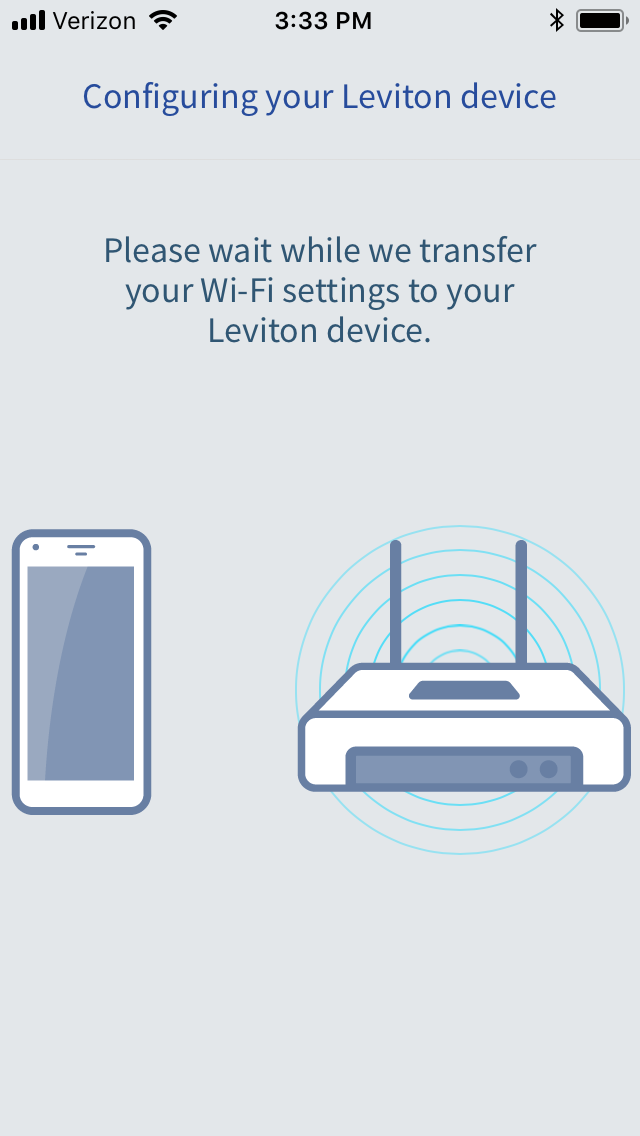

Step 5:
The app passes the Wi-Fi information to the Leviton Wi-Fi device

To use the LED on the device to troubleshoot, start with the load in the off state. If the load is not in the off state when starting, the LED indications below may not be an exact match.

Watch the LED during Step 5. If your device does not successfully connect, move to step 5a.

Successful Wi-Fi connection:

Flashing green slows down to a slower rate:

This occurs shortly after the continue button is pressed in step 4
Wi-Fi Information is being transferred from the mobile device app to the Leviton Wi-Fi device

LED Turns On Solid:

Wi-Fi information is correct and device is preparing to reboot
Note: if the load was not placed in the off state prior to starting this step, the LED will be solid off

Quick Red, Amber, Green Flash:

Device is rebooting

LED is steady Green:

Device has successfully connected to the Wi-Fi network and the internet

Step 5a:

Using the Device LED to determine connection

To use the LED on the device to troubleshoot, start with the load in the off state. If the load is not in the off state when starting, the LED indications below may not be an exact match.

Incorrect Wi-Fi Password:

Flashing green slows down to a slower rate:

This occurs shortly after the continue button is pressed in step 4
Wi-Fi Information is being transferred from the mobile device app to the Leviton Wi-Fi device

LED Blinks Amber:

Wi-Fi information is incorrect
In most cases the password is incorrect
The wrong Wi-Fi network may have been chosen or signal strength is poor

Step 6:
The Decora Smart device registers with the cloud

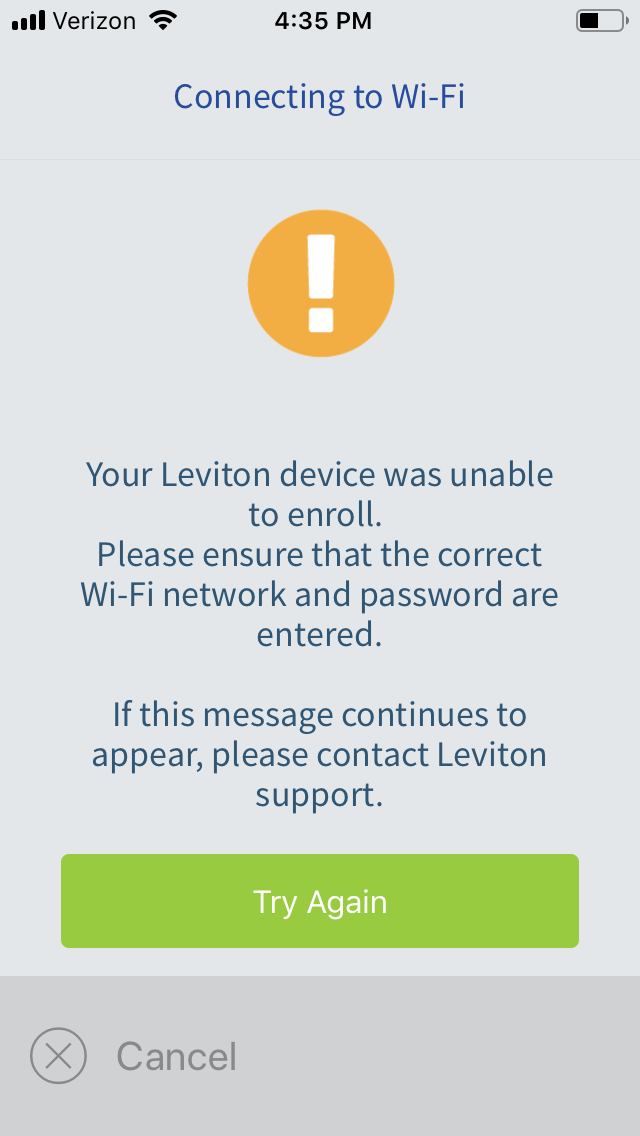

If the App shows screen with the Try Again option:
- Be certain to default the device and return to the flashing green LED
- Hold the LED button or top of the paddle for 14 seconds
- After 7 seconds the LED will turn amber, continue to hold
- After 14 seconds the LED will flash amber/red, release the button
- The device will default and return to the flashing green LED
- Press the Try Again Button to restart the enrollment process.

Step 7:

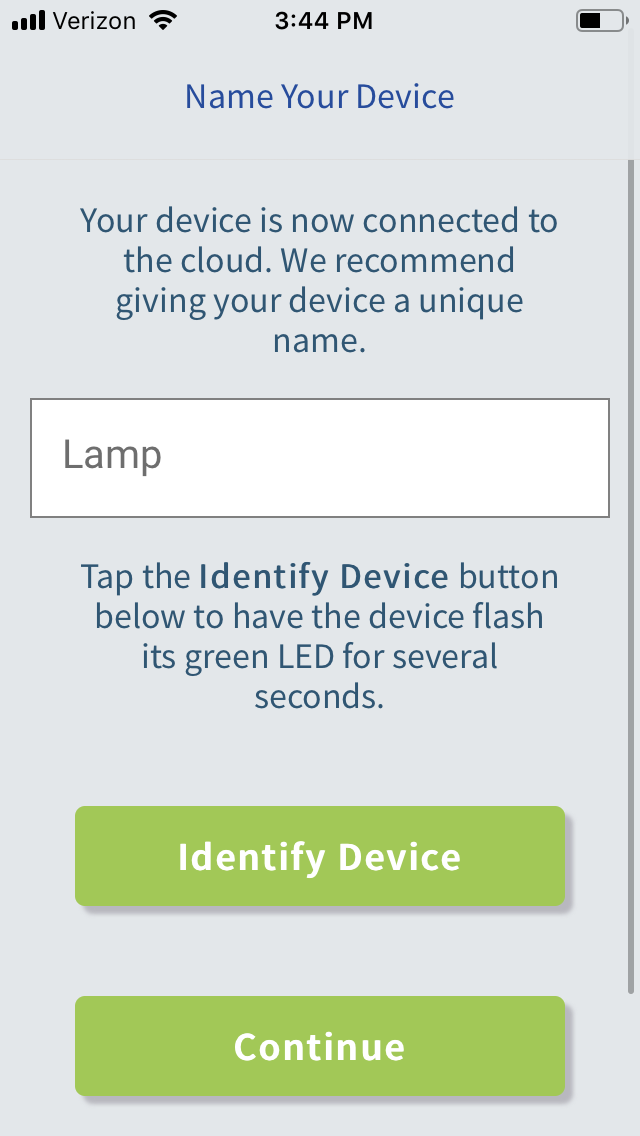

The Default name for the device will be the name and device identification Leviton-xxxx. Change the name of the device. Note that you do not need to include the room name in the description. For instance you can use Lamp. Once the device is included you will be able to place it in a Room to better organize your devices.

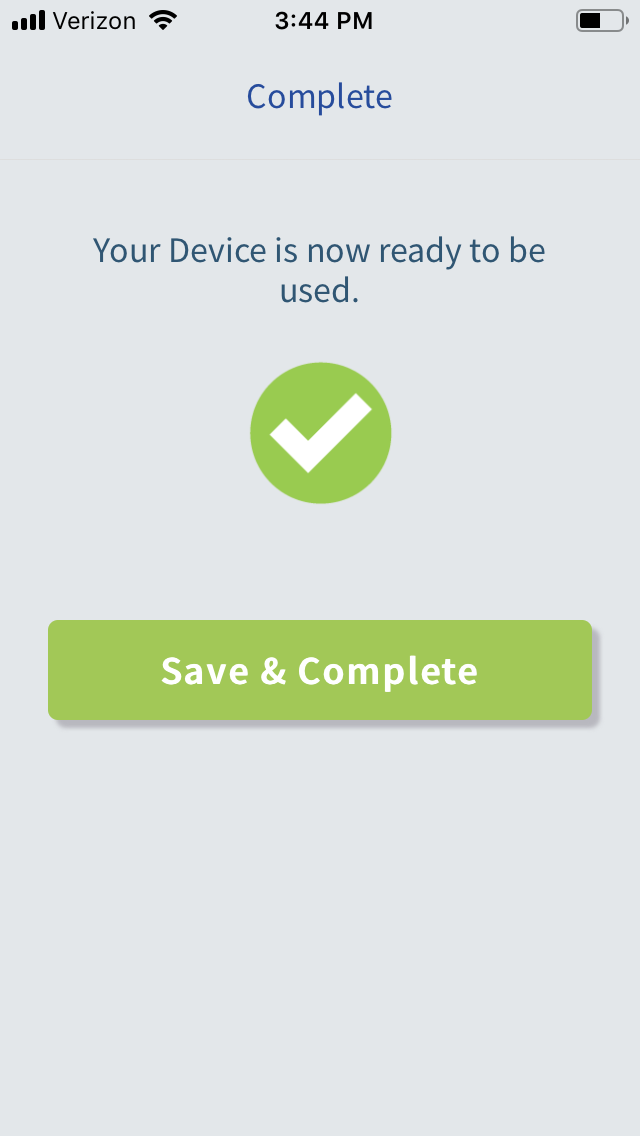

Complete:

Your Leviton Wi-Fi device has now successfully connected to your My Leviton App.
